PD35R_ACE_CL01

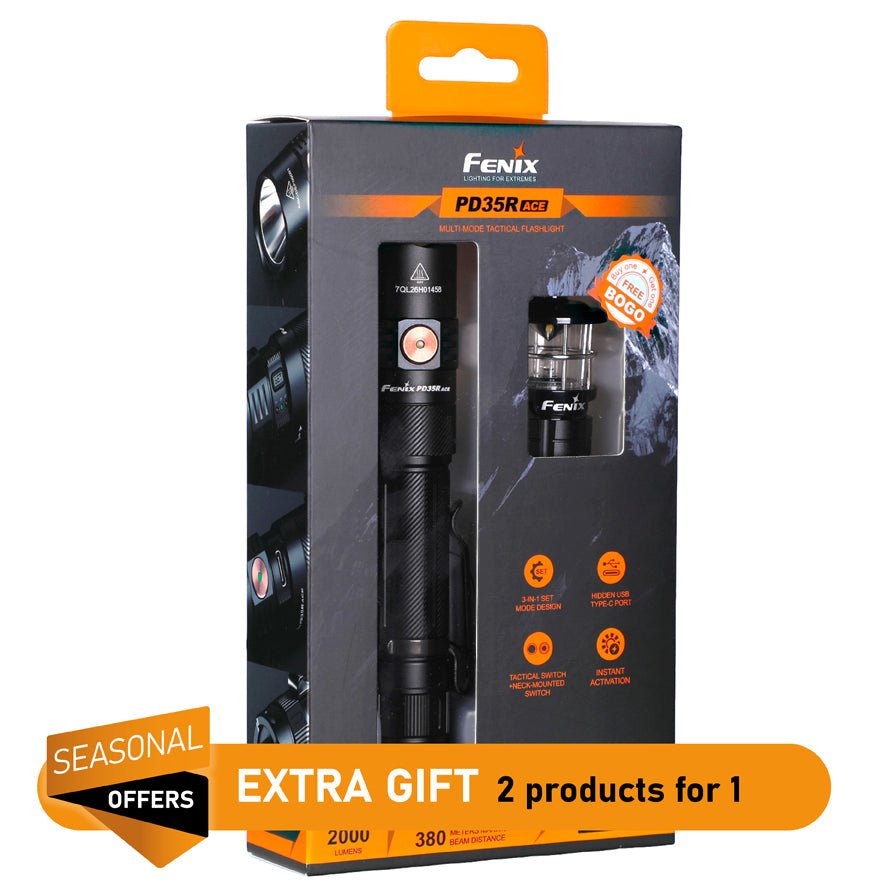

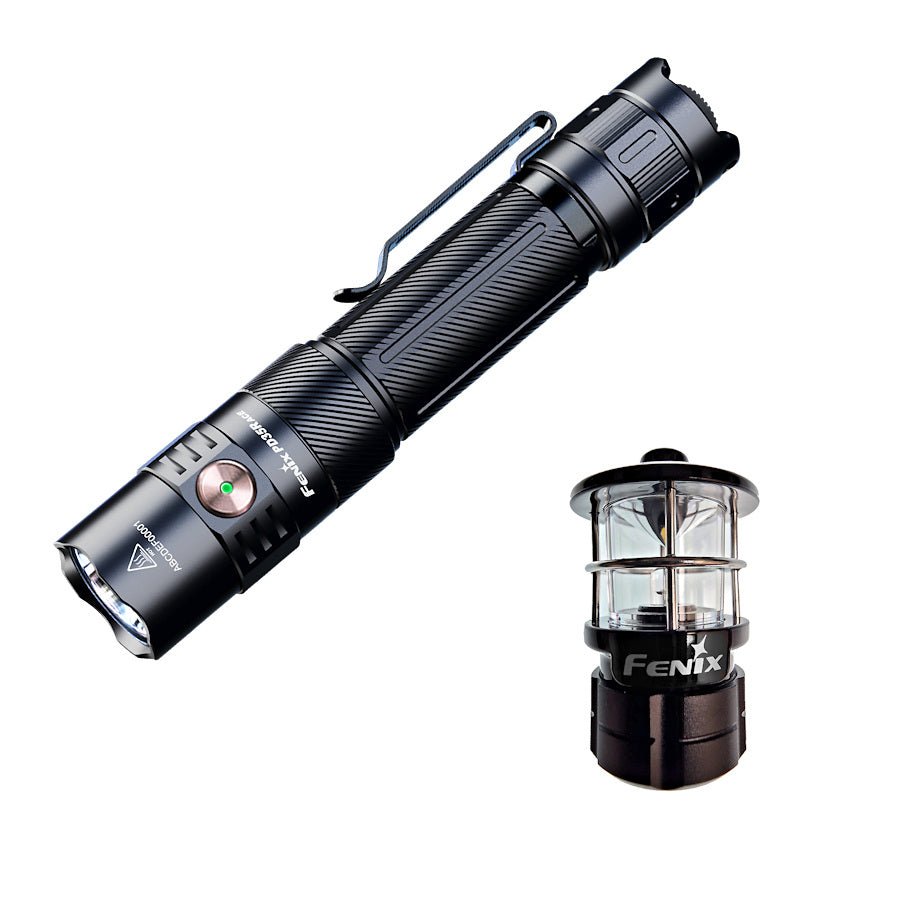

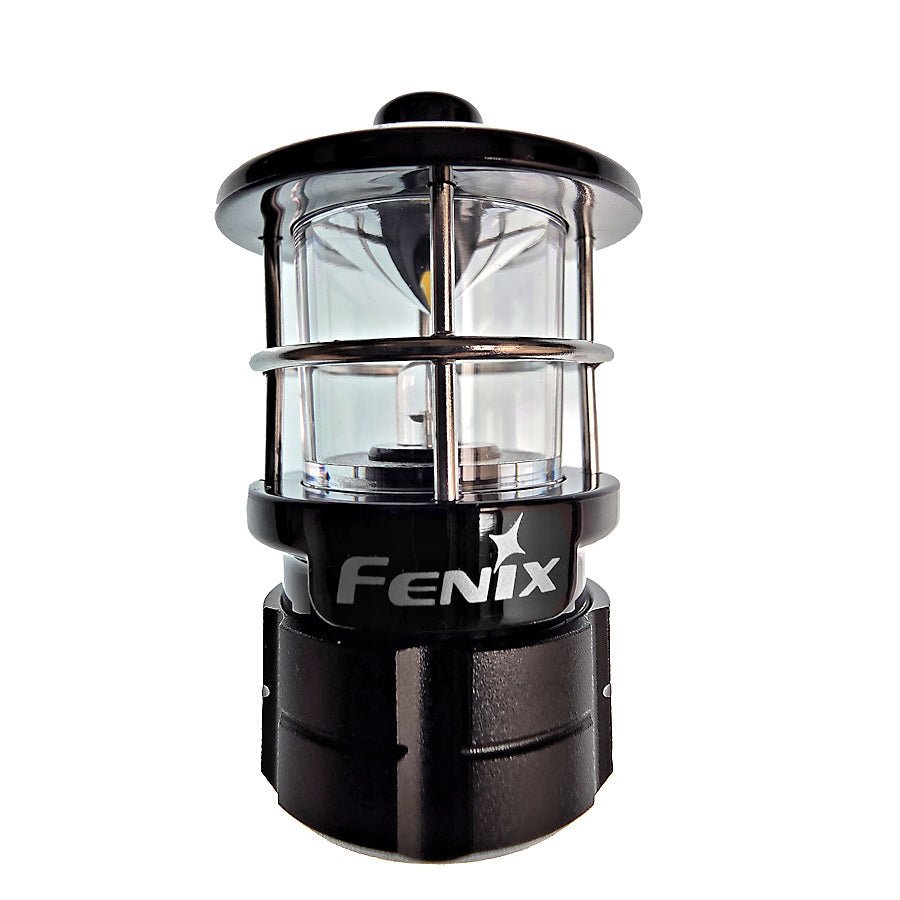

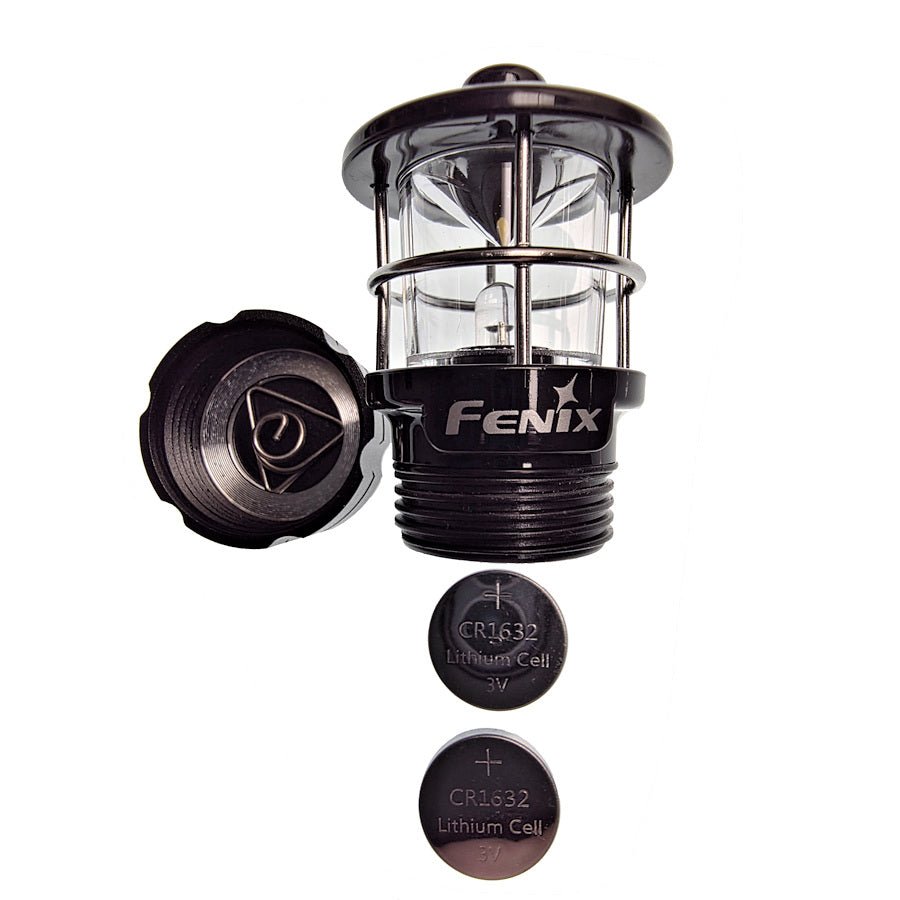

Purchase the Fenix PD35R ACE and get a complimentary CL01 mini lantern, available only while supplies last.

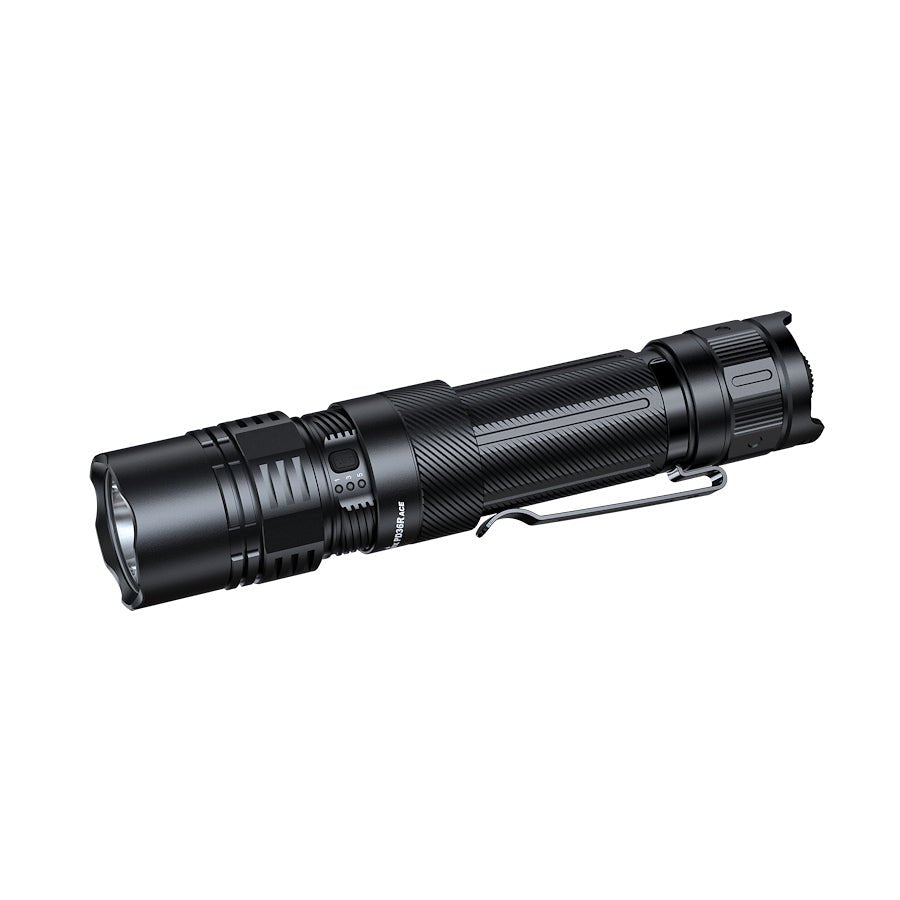

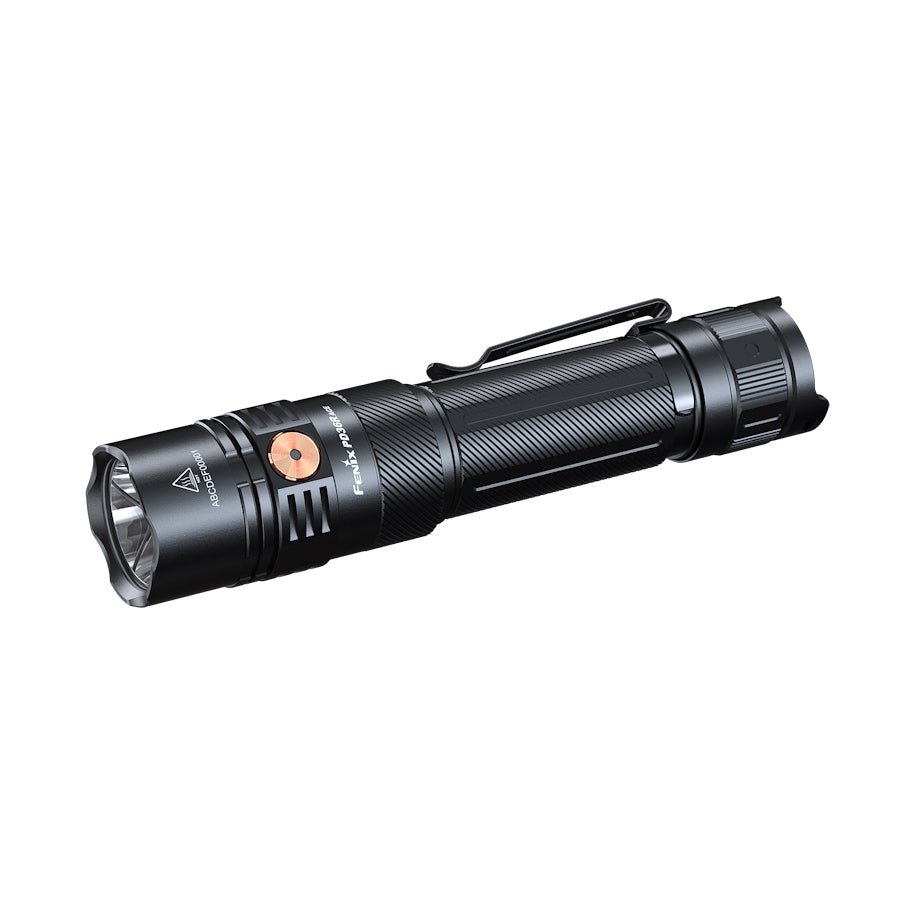

Fenix PD35R ACE torch offers incredible performance and convenient operation in an extremely compact package. The Fenix SET Mode, operated by its own hidden switch gives you a choice of 3 individual output modes to suit your task, from Tactical operation to every day use. The system allows Strobe mode to be enabled or disabled for total user control. This 2000 lumen beauty can reach out to over 380 metres at full power, yet is equally adept at close range and lower brightness. A 1 lumen Eco Mode offers an incredible 30 days emergency run time!

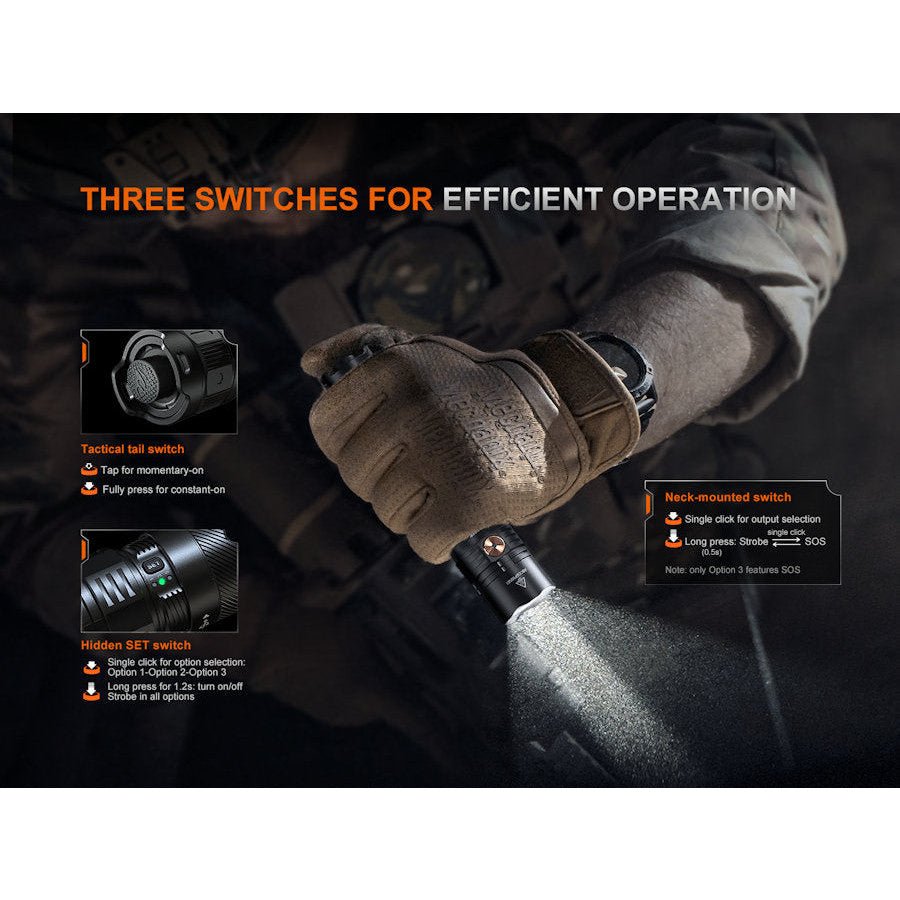

The tail cap switch controls on/off and momentary-on functions, the neck switch operates brightness levels and Strobe/SOS modes, whilst the SET switch hidden under a waterproof screw cover selects the operational mode and Strobe enable/disable settings.
A large capacity, rechargeable 4000 mAh 18650 Li-ion battery is included.
For Police, Military and general use scenario's, the multiple brightness levels deliver a diverse range of lighting power, whether for close inspection and reading, general lighting or illuminating a distant subject. For convenience, your last used brightness level is remembered next time you switch on the light.
With USB-C type charging incorporated, PD35R ACE can be fully charged from empty in only 3 hours using the supplied USB - USB-C charge cable and suitable mains / portable charger.
Fenix PD35R ACE performance:
Eco: 1 lumen (720 hrs) - 8m beam
Low: 50 lumens (45 hrs 24 min) - 57m beam
Med: 350 lumens (7 hrs 16 min) - 147m beam
High 1000 lumens (3 hrs 20 min inc temperature and battery level step downs) - 252m beam
Turbo: 2000 lumens (2 hrs 50 min inc temperature and battery level step downs) - 380m beam
Strobe: 2000 lumens
SOS: 50 lumens
Fenix tested run times at each output level are achieved by switching the light on and letting it run uninterrupted until the battery is drained as per the ANSI standard. Re setting the torch to a higher power level during operation will reduce these run times.
Fenix PD35R ACE SET Modes:
Mode 1:
Turbo - Strobe
Mode 2:
Low - Med - Turbo - Strobe
Mode 3:
Eco - Low - Med - High - Turbo - Strobe - SOS
Note:
Strobe can be de-activated in all modes.
Fenix PD35R ACE LED torch features:
• Multi-Mode rechargeable flashlight - choice of 3 operation modes with innovative SET mode
• Luminus SFT40 LED with 6500k colour temperature
• Fenix ARB-L18-4000 18650 battery included (can use 2 x CR123)

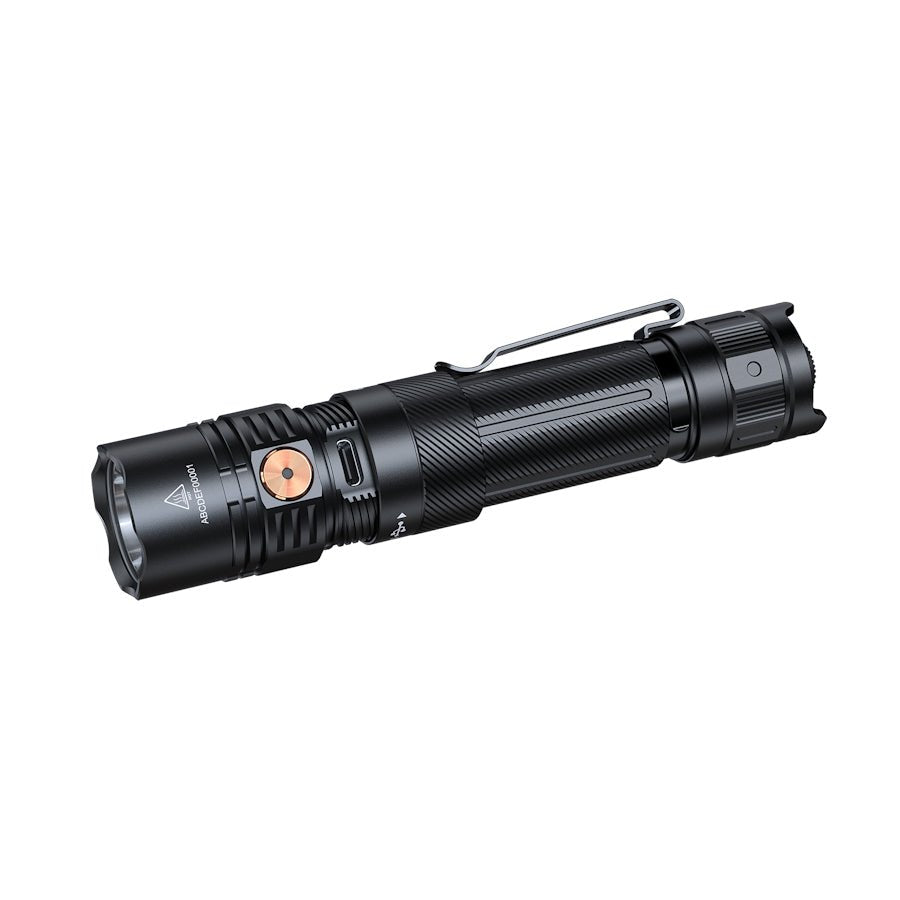

• Charge socket and mode switch located under waterproof screw cover
• Torch can be used while charging
• Switchable Strobe can be selected on or off
• 3 switches for simple, ergonomic operation
• Intelligent overheat protection reduces output at 60c
• Anti-slip body
• Pocket clip and lanyard for convenient carry
• Built-in battery level indicator
• 1.5 meter drop resistance
• IP68 - Waterproof to 2m depth
• HA111 Hard Anodized coating
•140.5mm long x 26.5mm at widest point x 23.6mm body diameter
• Weighs only 145g including battery
PD35R ACE is compatible with the following Fenix accessories:
AER-02-V2.0 remote pressure switch
ALG-00 rail mount
ALG-15 M-Lok rail mount
ALG-16 M-Lok rail mount
AOT-S+ traffic wand
AOF-S-+ colour filters
A0D-S v2.0 diffuser
With Fenix build quality, small size, extreme performance and ergonomic controls, PD35R ACE has what it takes for operation in tough environments! This is an ideal torch for Tactical Operations at the highest level, Police and other emergency services use. The light is also sure to find a home with many outdoors men, tradesmen and home users who appreciate the finest build, technology and performance for reliable every day use.

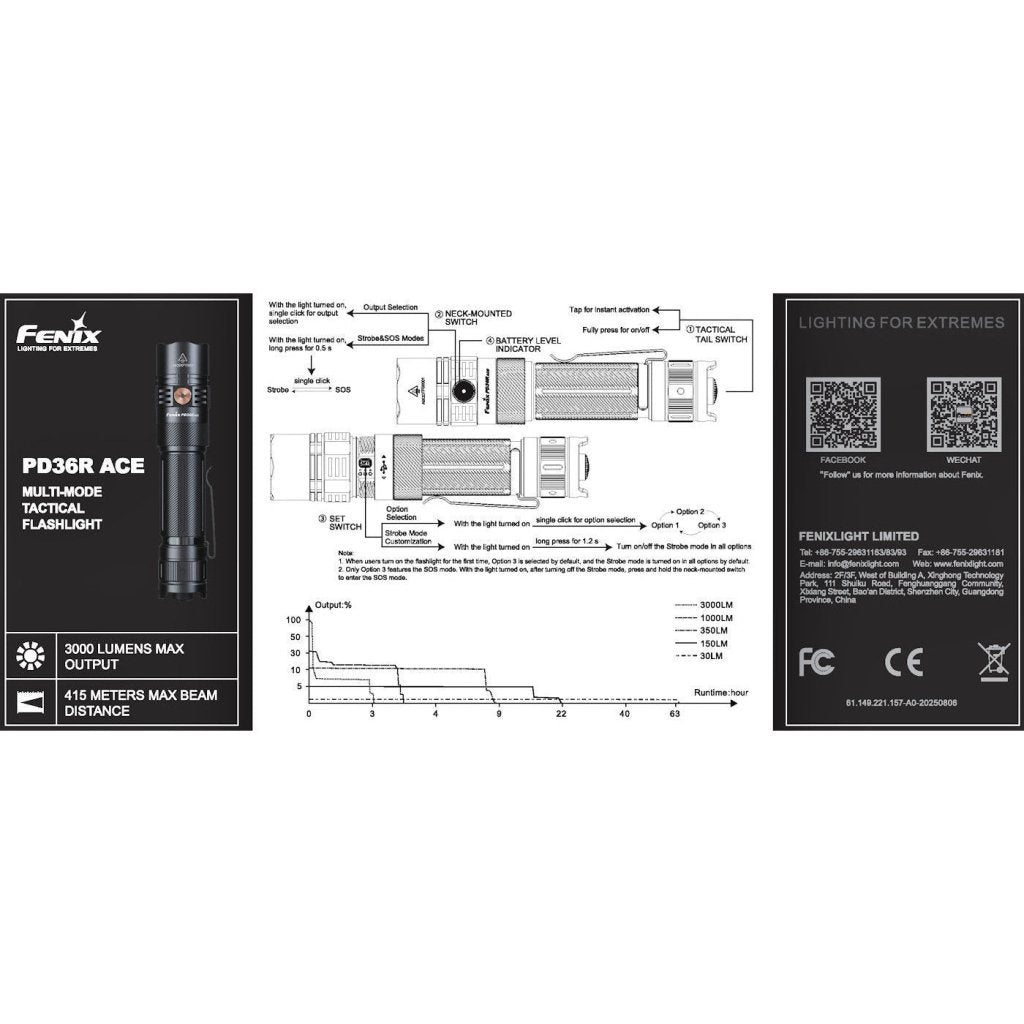

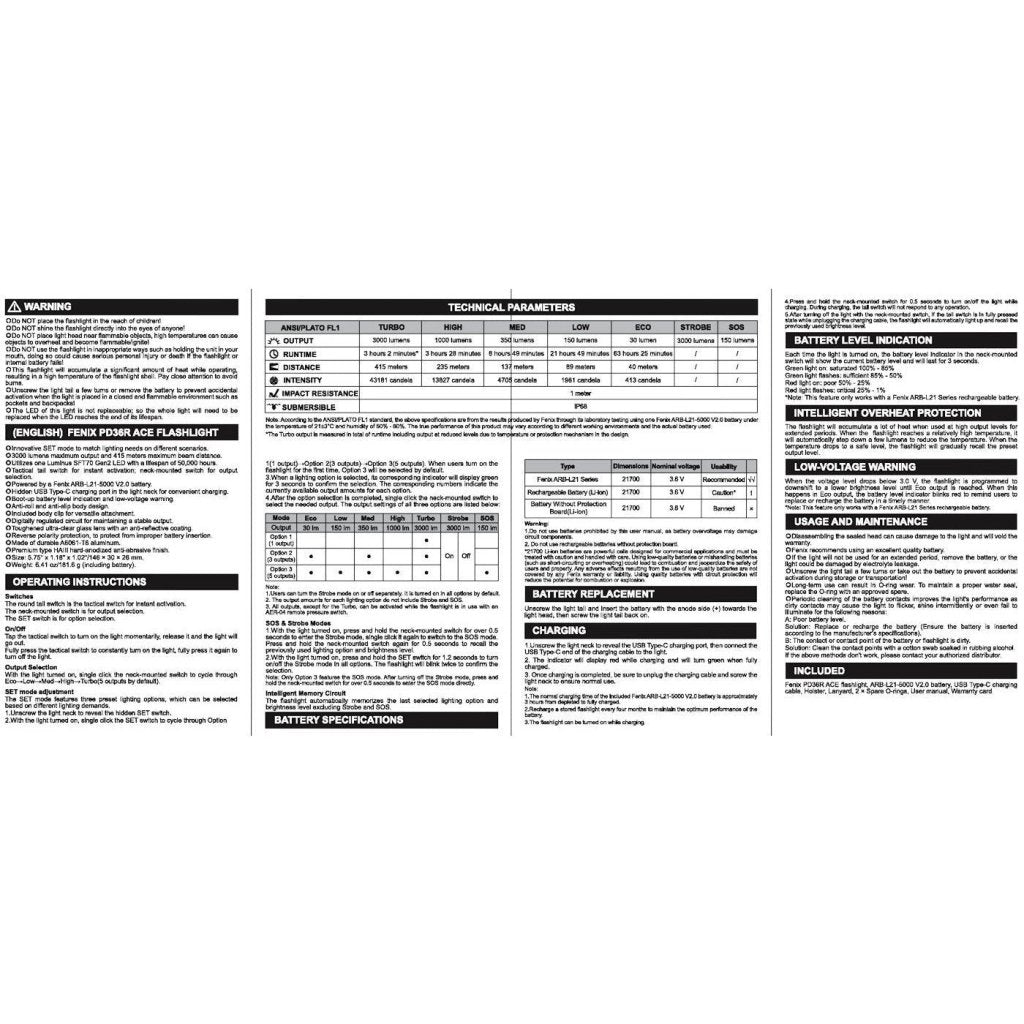

For full product details please refer to the user manual in the images area.
| Model | PD35R ACE With Free CL01 |
|---|---|
| Battery Type | 18650 |
| Battery Quantity | 1 |
| Additional Battery Type | 2 x CR123A non-rechargeable battery (Do not use 3.7v 16340 / RCR123 or 3.2v LiFePO4 18650 in this product) DO NOT attempt to recharge CR123A batteries in this product |
| LED Type | Luminus SFT40 LED |
| Output/Runtime | Turbo: 2000 Lumens, (2hrs 50min), High: 1000 Lumens, (3hrs 20min), Med: 350 Lumens, (7hrs 16min), Low: 50 Lumens, (45hrs 24mins), ECO: 1 Lumens, (720hrs), Strobe: 2000 Lumens, SOS: 50 Lumens |
| Flashing Modes | Strobe, SOS |
| Max Beam Distance | 380m |
| Reflector | Smooth aluminium reflector |
| Lens Type | Toughened Ultra - Clear glass lens with anti - reflective coating |
| Switch Type | Side button brightness switch / tail cap on - off - momentary switch / hidden SET switch for mode selection |
| Construction | A6061-T6 aircraft grade aluminum |
| Finish | Premium Type III hard-anodized anti-abrasive finish |
| Tail Stand | No |
| Pocket Clip | Yes |
| Waterproofing | IP68, 2m depth & dustproof |
| Dimensions/Weight | 140.5mm (Length) x 26.5mm (Head Diameter) x 23.6mm (Body Diameter) 145 grams (including battery) |
| Further Info | N/A |
Fenix PD35R ACE operation:
On/off:
Press the tactical switch gently to turn on the light momentarily, release it and the light will go out.
Fully press the tactical switch to constantly turn on the light, press it again and the light will go out.
Output Selection:
With the light turned on, single click the neck-mounted switch to cycle through Eco→Low→Med→High→Turbo.
SET mode adjustment:
The SET mode is built-in with three lighting options, which can be selected based on different lighting demands.
1. Loosen the light neck collar to reveal the hidden SET switch.
2. With the light turned on, single click the SET switch to cycle through Option 1 (1 output)→Option 2 (3 outputs)→Option 3 (5 outputs). When users turn on the flashlight for the first time, Option 3 will be selected by default.
3. When a lighting option is selected, its corresponding indicator will display green for 3 seconds to confirm the selection. The corresponding numbers indicate the currently available output amounts for each option.
4. After the option selection is completed, single click the neck-mounted switch to select the needed output.
Note:
1. When utilizing two CR123A batteries, the flashlight's Turbo mode provides a brightness level of 1000 lumens, and the flashlight's Strobe mode also provides a brightness level of 1000 lumens.
2. The customizable Strobe mode can be turned on or off independently by users. It is turned on in all options by default.
3. The output amounts for each lighting option do not include Strobe and SOS.
SOS & Strobe Modes:
1. With the light turned on, press and hold the neck-mounted external switch for 0.5 seconds to enter the Strobe mode, single click it once again to switch to the SOS mode. Press and hold the neck-mounted switch again for 0.5 seconds to recall the previously used lighting option and brightness level.
2. With the light turned on, press and hold the SET switch for 1.2 seconds to turn on/off the Strobe mode in all options. The flashlight will blink twice to confirm the selection.
Note:
Only Option 3 features the SOS mode. After turning off the Strobe mode, press and hold the external neck-mounted switch for 0.5 seconds to enter the SOS mode when required.
Intelligent Memory Circuit:
The light automatically memorizes the last selected lighting option and brightness level excluding Strobe and SOS.
Battery Specifications:
Fenix ARB-L18 Series 18650 3.6 V Recommended √√
Non-rechargeable Battery (Li-ion) CR123A 3.0 V Usable (no charging) √
Rechargeable Battery (Li-ion) 18650 3.6 V Caution* !
Rechargeable Battery (Li-ion) 16340 3.6 V Banned ×
Rechargeable Battery (LiFePO4) 18650 3.2 V Banned ×
*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.
Battery Replacement:
Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.
Charging:
1. Loosen the neck collar to reveal the USB Type-C charging port, then connect the USB Type-C end of the charging cable to the light.
2. The indicator will display red while charging and will turn green when fully charged.
3. Once charging is completed, be sure to unplug the charging cable and tighten the neck collar to ensure normal use.
Note:
1. The normal charging time of the included Fenix ARB-L18-4000 battery is approximately 3 hours from depleted to fully charged with a 5 V/3 A charging adapter.
2. Recharge a stored light every four months to maintain the optimum performance of the battery.
3. Press and hold the neck-mounted switch for 0.5 seconds to turn on/off the light while charging. During charging, the tail switch will not respond to any operation.
4. After turning off the light with the neck-mounted switch, if the tail switch is in fully pressed state while unplugging the charging cable, the light will light up automatically and recall the previously used brightness level.
Battery Level Indication:
Each time the light is turned on, the indicator will show the current battery level and will last for 3 seconds.
Green light on: saturated 100% - 85%
Green light flashes: sufficient 85% - 50%
Red light on: poor 50% - 25%
Red light flashes: critical 25% - 1%
*Note: This feature only works with a Fenix ARB-L18 Series battery.
Intelligent Overheat Protection:
The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the light will gradually recall the preset output level.
Low-voltage Warning:
When the voltage level drops below the preset level, the light is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red to remind users to replace or recharge the battery in a timely manner.
*Note: This feature only works with a Fenix ARB-L18 Series battery.
Usage and Maintenance:
Disassembling the sealed head can cause damage to the light and will void the warranty.
Fenix recommends using an excellent quality battery.
If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage.
Unscrew the light tail a few turns or remove the battery to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
◎ Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.
◎ Lubricate the O-ring occasionally with silicone oil or silicone grease to maintain smooth removal and re-fitting of the tail cap and prevent O-ring wear.
◎Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate.
